12.6V/2.5V并聯穩壓器，帶四路運算放大器36V DIODES AP4310
- 品牌：???DIODES
- 型號：???AP4310
Description
The AP4310E is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies
The device contains two Op Amps and a 2.5V precision shunt voltage reference. Op Amp 1 is designed for voltage control with its noninverting input internally connected to the output of the shuntregulator. Op Amp 2 is for current control with both inputs uncommitted. The IC offers the power converter designer a controlsolution that features increased precision with a corresponding reduction in system complexity and cost. AP4310E has more stringent reference voltage tolerance and offset.
The AP4310E is available in standard package of SO-8.
Applications

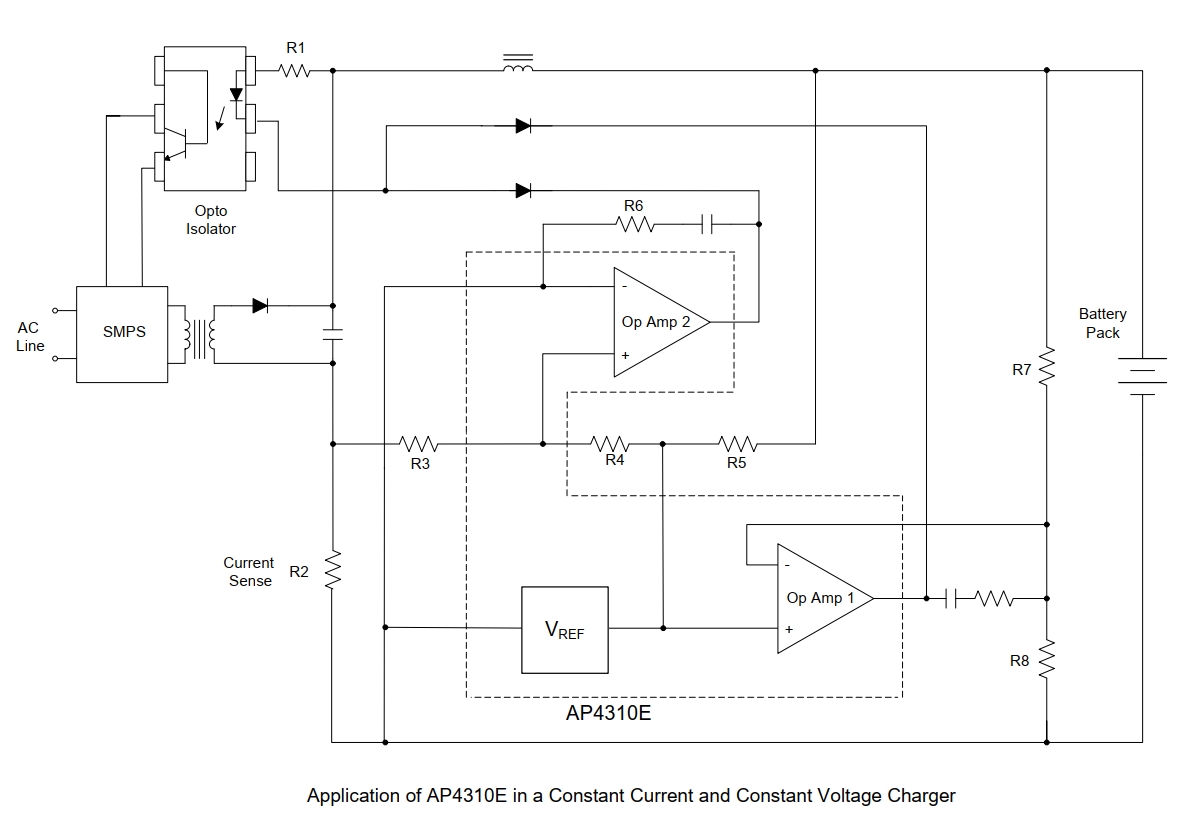

? Battery Charger
? Switching Power Supply
Features
OP Amp
? Input Offset Voltage: 0.5mV
? Supply Current: 75?A per OP Amp at 5.0V Supply Voltage
? Unity Gain Bandwidth:1MHz
? Output Voltage Swing: 0 to VCC-1.5V
? Power Supply Range: 3 to 36V Voltage Reference
? Fixed Output Voltage Reference: 2.5V
? Reference Voltage Tolerance: ±0.4%
? Sink Current Capability: 0.05 to 80mA
? Typical Output Impedance: 0.2?
? Totally Lead-free & Fully RoHS Compliant (Notes1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
